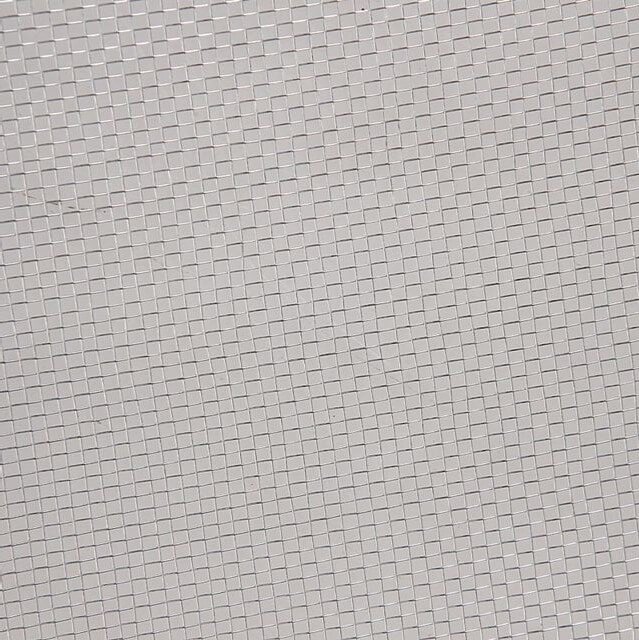

Square Wire Mesh

Square Wire Mesh is is manufactured in galvanized iron wire, stainless steel wire, aluminum wire.

Square Wire Mesh is used as window screen, industrial sieves in sugar, chemical, stone crusher industries.

Features

  • BWG20-BWG35, 0.12mm—0.9mm
  • Mesh: 4-20
  • Width: 0.9m-1.5m
  • Length: 10m-30m
Get Free Quote

    Please prove you are human by selecting the Truck.

    Place of Origin: Hebei, China
    Diameter: BWG20-BWG35, 0.12mm—0.9mm
    Hole Shape: Square
    Mesh: 4Mesh-20Mesh
    Width: 0.9-1.5m/Roll
    Length: 10-30m/Roll
    Type: 1.Hot dipped/Electro galvanized after woven 2.Hot dipped/Electro galvanized before woven. 3.Stainless Steel. 4.Blue Galvanized.
    Edge Processing Style: Closed edge, Raw edge.
    Packing: In rolls,wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.
    Chatacteristics: It has fine features of neat & precise, sturdy structure, durable& strongly rust-resistant and fine anti-corrosiveness.
    Usage: Square Wire Mesh is widely used in industries and constructions to sieve grain powder, filter liquid and gas,for other purposes like safe guards on machinery enclosures.
    Capcity: 100 Rolls/week
    Specifications of Square Wire Mesh
    Mesh hole & Wire gauge (BWG) Mesh hole & Wire gauge (BWG)
    4meshx 20#,21#,22#, 23#,24#,25#,26#,27# 22meshx 30#,31#,32#,33#,34#,35#,36#
    5meshx 20#,21#,22#, 23#,24#,25#,26#,27#,28# 24mesh x 31#,32#,33#,34#,35#,36#
    6meshx 21#,21#,22#, 23#,24#,25#,26#,27#,28#,29# 26mesh x 32#,33#,34#,35#,36#
    8meshx 22#,23#,24#,25#,26#,27#,28#,29#,30#,31# 28mesh x 32#,33#,34#,35#,36#
    10meshx 22#, 23#,24#,25#,26#,27#,28#,29#,30#,31#,32# 30mesh x 32#,33#,34#,35#,36#
    12meshx 23#,24#,25#,26#,27#,28#,29#,30#,31#,32#,33# 32mesh x 33#,34#,35#,36#
    14meshx 27#,28#,29#,30#,31#,32#,33# 36mesh x 33#,34#,35#,36#, 37#
    16meshx 27#,28#,29#,30#,31#,32#,33#,34#,35# 40mesh x 35#,36#, 37#
    20meshx 29#,30#,31#,32#,33#,34#,35# 50mesh x 36#, 37# , 38#
    Note: The Width and Length of mesh could make according to customers' request.
    Specifications of Woven with wave wires
    Mesh Diameter Wire Gauge Width &Length Mesh Diameter Wire Gauge Width &Length
    0.2cm BWG 25-20 1.5M*30M 0.8cm BWG 22-17 1.5M*30M
    0.3cm BWG 27-18 1.5M*30M 1.0cm BWG 21-16 1.5M*30M
    0.4cm BWG 26-18 1.5M*30M 1.2cm BWG 20-16 1.5M*30M
    0.5cm BWG 25-17 1.5M*30M 1.5cm BWG 19-15 1.5M*30M
    0.6cm BWG 24-17 1.5M*30M 2.0cm BWG 18-14 1.5M*30M
    0.7cm BWG 23-17 1.5M*30M 2.5cm BWG 17-13 1.5M*30M
    Wire Gauge SWG(mm) BWG(mm) Wire Gauge SWG(mm) BWG(mm)
    6 4.877 5.156 20 0.914 0.889
    7 4.47 4.572 21 0.813 0.813
    8 4.064 4.191 22 0.711 0.711
    9 3.658 3.759 23 0.61 0.635
    10 3.251 3.404 24 0.559 0.559
    11 2.946 3.048 25 0.508 0.508
    12 2.642 2.796 26 0.475 0.475
    13 2.337 2.413 27 0.417 0.406
    14 2.032 2.108 28 0.376 0.356
    15 1.829 1.829 29 0.345 0.33
    16 1.626 1.651 30 0.315 0.305
    17 1.422 1.473 31 0.295 0.254
    18 1.219 1.245 32 0.274 0.229
    19 1.016 1.067 33 0.254 0.203
