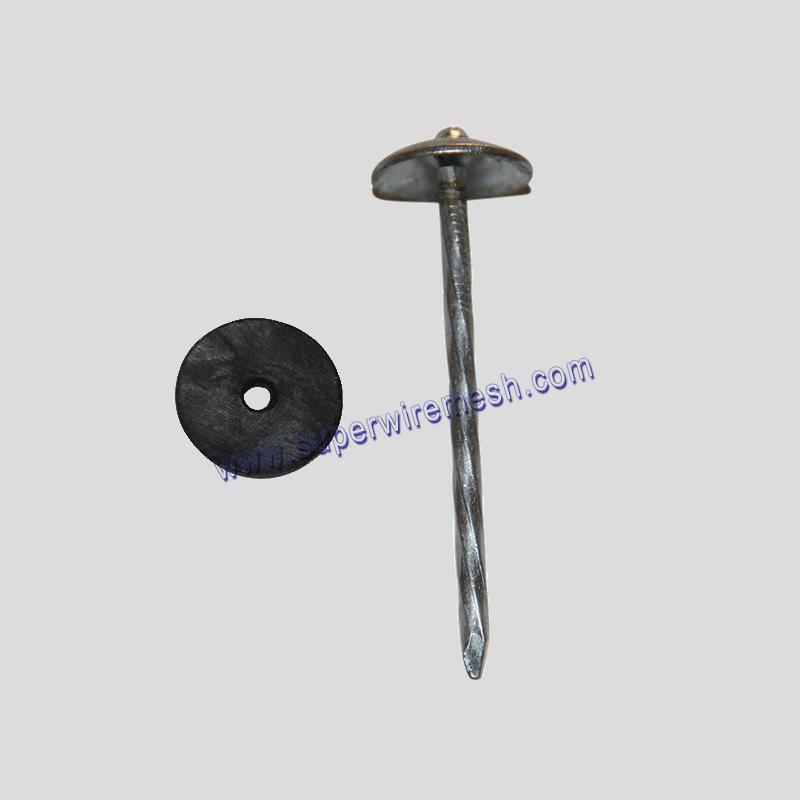

Roofing Nail
Roofing Nail is technically called clout nails or nails with a short shank and a wide flat head.
Roofing Nail is used to fasten shingles, roofing felt, or sheet metal to wood. The shanks can be smooth or ringed for increased pull out resistance.
Features
- 2.0mm-4.0mm(BWG8-BWG14)
- Nail Length: 1-1/2" – 2-1/2"
- Head Diameter: 20mm
| Place of Origin: | Hebei, China |
| Diameter: | 2.0mm-4.0mm(BWG8-BWG14) |
| Head diameter: | 20mm |
| Nail Length: | 1-1/2" – 2-1/2" |
| Surface Treatment: | polish or galvanized |
| Packing: | Wooden Carton or Gunny Bag |
| Usage: | For wooden case and furniture and building. | Capcity: | 100 ton/week |
| Specification of Roofing Nails | |||
|---|---|---|---|
| Specification | Length (mm) | Rod diameter(mm) | Head diameter(mm) |
| bwg8*2" | 50.8 | 4.19 | 20 |
| bwg8*2-1/2" | 63.5 | 4.19 | 20 |
| bwg8*3" | 76.2 | 4.19 | 20 |
| bwg9*1-1/2" | 38 | 3.73 | 20 |
| bwg9*2" | 50.8 | 3.73 | 20 |
| bwg9*2-1/2" | 63.5 | 3.73 | 20 |
| bwg9*3" | 76.2 | 3.73 | 20 |
| bwg10*1-3/4" | 44.5 | 3.37 | 20 |
| bwg10*2" | 50.8 | 3.37 | 20 |
| bwg10*2-1/2" | 63.5 | 3.37 | 20 |
| bwg11*1-1/2" | 38 | 3.02 | 18 |
| bwg11*1-3/4" | 44.5 | 3.02 | 18 |
| bwg11*2" | 50.8 | 3.02 | 18 |
| bwg11*2-1/2" | 63.5 | 3.02 | 18 |
| bwg12*1-1/2" | 38 | 2.74 | 18 |
| bwg12*1-3/4" | 44.5 | 2.74 | 18 |
| bwg12*2" | 50.8 | 2.74 | 18 |
| bwg13*1 1/2" | 38 | 2.38 | 15 |
| bwg13*1 3/4" | 44.5 | 2.38 | 15 |
| bwg13*2" | 50.8 | 2.38 | 15 |
| bwg14*1 3/4" | 40 | 2.1 | 14 |
| Wire Gauge | SWG(mm) | BWG(mm) | Wire Gauge | SWG(mm) | BWG(mm) |
|---|---|---|---|---|---|
| 6 | 4.877 | 5.156 | 20 | 0.914 | 0.889 |
| 7 | 4.47 | 4.572 | 21 | 0.813 | 0.813 |
| 8 | 4.064 | 4.191 | 22 | 0.711 | 0.711 |
| 9 | 3.658 | 3.759 | 23 | 0.61 | 0.635 |
| 10 | 3.251 | 3.404 | 24 | 0.559 | 0.559 |
| 11 | 2.946 | 3.048 | 25 | 0.508 | 0.508 |
| 12 | 2.642 | 2.796 | 26 | 0.475 | 0.475 |
| 13 | 2.337 | 2.413 | 27 | 0.417 | 0.406 |
| 14 | 2.032 | 2.108 | 28 | 0.376 | 0.356 |
| 15 | 1.829 | 1.829 | 29 | 0.345 | 0.33 |
| 16 | 1.626 | 1.651 | 30 | 0.315 | 0.305 |
| 17 | 1.422 | 1.473 | 31 | 0.295 | 0.254 |
| 18 | 1.219 | 1.245 | 32 | 0.274 | 0.229 |
| 19 | 1.016 | 1.067 | 33 | 0.254 | 0.203 |
