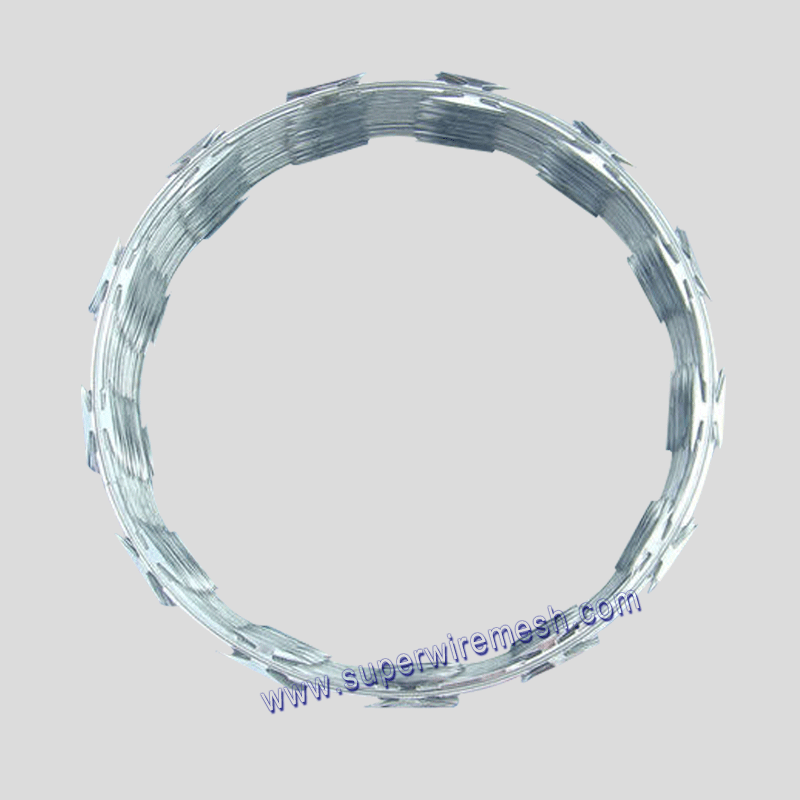

Razor Wire
Razor wire is a kind of modern security fencing with razor sharp steel blade and high-tensile wire.
Barbed tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall.
Features
- Core wire: 2.5mm
- Blade distance: 26-100mm
- Blade length:10-65mm
- BTO-10,12,20,22,CBT-60,65
| Specification | |
|---|---|
| Place of Origin: | China |
| Material: | High carbon steel, galvanized steel sheet and wire, stainless steel sheet and wire. |
| Wire gauge: | 2.0-4.0mm |
| Surface treatment: | Electro galvanized, hot dipped galvanized. |
| Barb length: | 12-65mm |
| Barb space: | 26-100mm |
| Reference number | BTO-12,BTO-18,BTO-20,BTO-22,BTO-30,CBT-60,CBT-65 |
| Zinc coating: | 8-300g/m2 |
| Type: | Concertina coils,straight type razor wire,crossed type and flat type. |
| Application: | It can be installed in the form of barbed tape wire or concertina coil to walls or fencing. |
| Packing 1: | Water proof paper inside,weaving bag outside. |
| Packing 2: | In coil,then put into carton or pallet |
| Capcity: | 50tons/week |
| Reference Number |
Thickness mm |
Wire Diameter |
Blade Length |
Blade Width |
Blade Spacing |
|---|---|---|---|---|---|
| BTO-12 | 0.5±0.05 | 2.5mm±0.1 | 10mm±1 | 13mm±1 | 26mm±1 |
| BTO-12 | 0.5±0.05 | 2.5mm±0.1 | 12mm±1 | 15mm±1 | 26mm±1 |
| BTO-18 | 0.5±0.05 | 2.5mm±0.1 | 18mm±1 | 15mm±1 | 33mm±1 |
| BTO-20 | 0.5±0.05 | 2.5mm±0.1 | 20mm±1 | 15mm±1 | 34mm±1 |
| BTO-22 | 0.5±0.05 | 2.5mm±0.1 | 22mm±1 | 15mm±1 | 45mm±1 |
| BTO-28 | 0.5±0.05 | 2.5mm±0.1 | 28mm±1 | 15mm±1 | 45mm±1 |
| BTO-30 | 0.5±0.05 | 2.5mm±0.1 | 30mm±1 | 18mm±1 | 26mm±1 |
| CBT-60 | 0.5±0.05 | 2.5mm±0.1 | 60mm±1 | 32mm±1 | 100mm±1 |
| CBT-65 | 0.5±0.05 | 2.5mm±0.1 | 65mm±1 | 21mm±1 | 100mm±1 |
