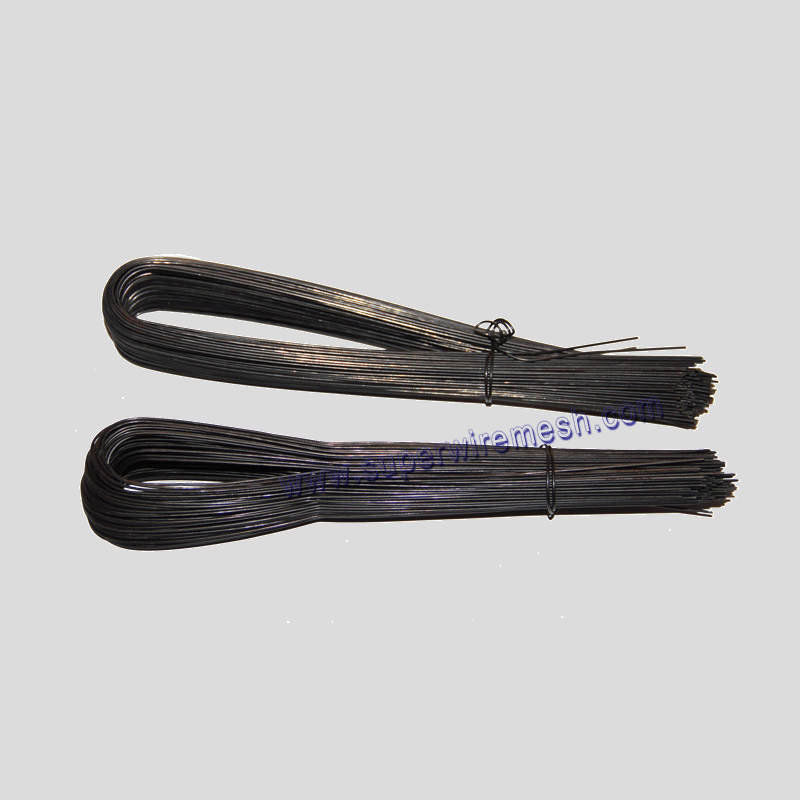

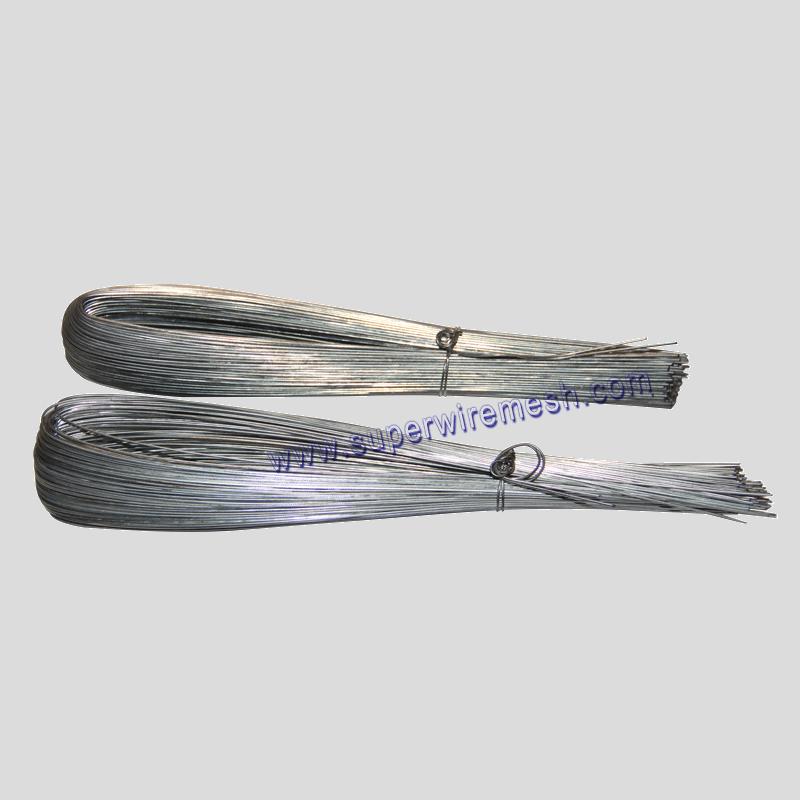

U Type Wire

U Type Wire is mostly used as binding wire in construction.

U Type Wire can be made of galvanized wire, electro galvanized or hot-dip galvanized or black iron wire.

Features

  • BWG22-BWG18，,0.7mm—1.2mm
  • Tensile strength: 350N-550N/mm2
  • Elongation: 10%-25%
Get Free Quote

    Please prove you are human by selecting the Tree.

    Place of Origin: Hebei, China
    Diameter: BWG22-BWG18，,0.7mm—1.2mm
    Zinc Rate: 8-300g/m2
    Tensile Strength: 30kg-70kg/㎡
    Elongation Rate: 10%-25%
    Surface treatment: Galvanized/Annealed/PVC coated.
    Length: 250mm-3000mm
    Weight: 0.1kg-10kg/Roll. Or as your require.
    Packing1: 1)By carton 2)By pallet 3)Plastic film inside.
    Packing2: 2.5kg/5kg/7.5kg per coil, wrapped with plastic, then in carton.
    Usage: Used as baling and binding wire in construction or daily life.
    Capcity: 100 ton/week
    Dia: 0.7mm-1.2mm Length: 250mm-750mm
    Dia: 2.0mm-5.0mm Length: 250mm-3000mm
    The length could be produced as requirement.
    Dia(mm) Length(mm)
    0.7mm 250,300,350,400,450,500,550,600,650,700,750
    0.8mm 250,300,350,400,450,500,550,600,650,700,750
    0.9mm 250,300,350,400,450,500,550,600,650,700,750
    1.2mm 350-550,600-650-750
    Pvc 1.2mm 350,450,550-750
    Wire Gauge SWG(mm) BWG(mm) Wire Gauge SWG(mm) BWG(mm)
    6 4.877 5.156 20 0.914 0.889
    7 4.47 4.572 21 0.813 0.813
    8 4.064 4.191 22 0.711 0.711
    9 3.658 3.759 23 0.61 0.635
    10 3.251 3.404 24 0.559 0.559
    11 2.946 3.048 25 0.508 0.508
    12 2.642 2.796 26 0.475 0.475
    13 2.337 2.413 27 0.417 0.406
    14 2.032 2.108 28 0.376 0.356
    15 1.829 1.829 29 0.345 0.33
    16 1.626 1.651 30 0.315 0.305
    17 1.422 1.473 31 0.295 0.254
    18 1.219 1.245 32 0.274 0.229
    19 1.016 1.067 33 0.254 0.203
